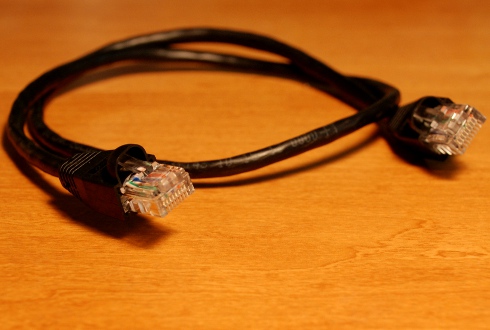

This adapter cable converts between the wiring used by D-Light/LOR devices and J1Sys/Lynx/DMX devices.


• RJ45 male connections at each end
• May be connected in either direction
• Includes optional third (common) wire (recommended for some controllers)
• Available in custom lengths (contact us for a quote)
• Wiring Diagram:

  1 <> 4
  2 <> 5
  3 <> 3
  4 <> 1
  5 <> 2
  6 <> 8
  7 <> 7
  8 <> 6
